PET/CT, PET/MR Fusion

STEP
1

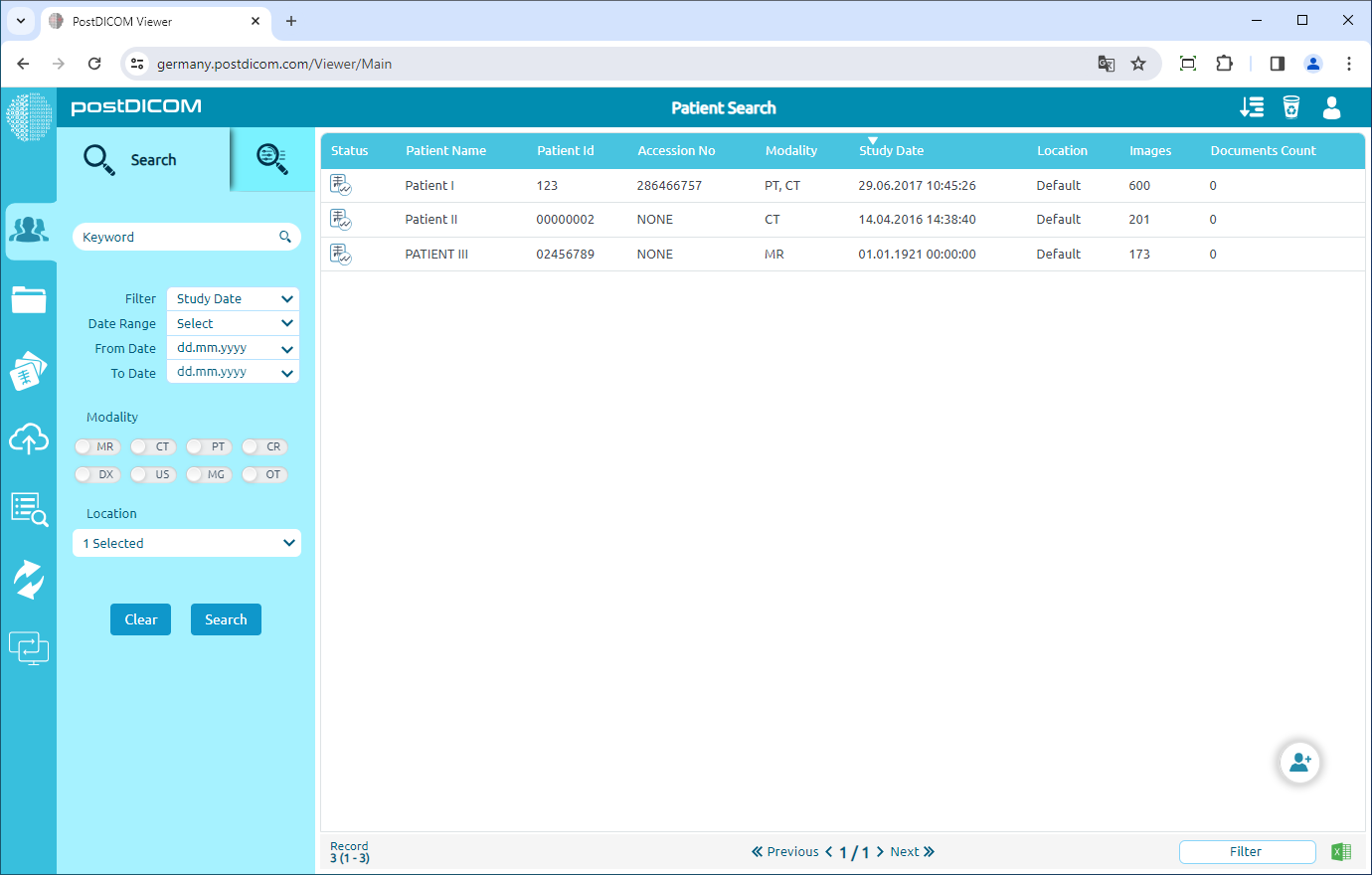

Open a patient study that you want to fusion.

STEP
2

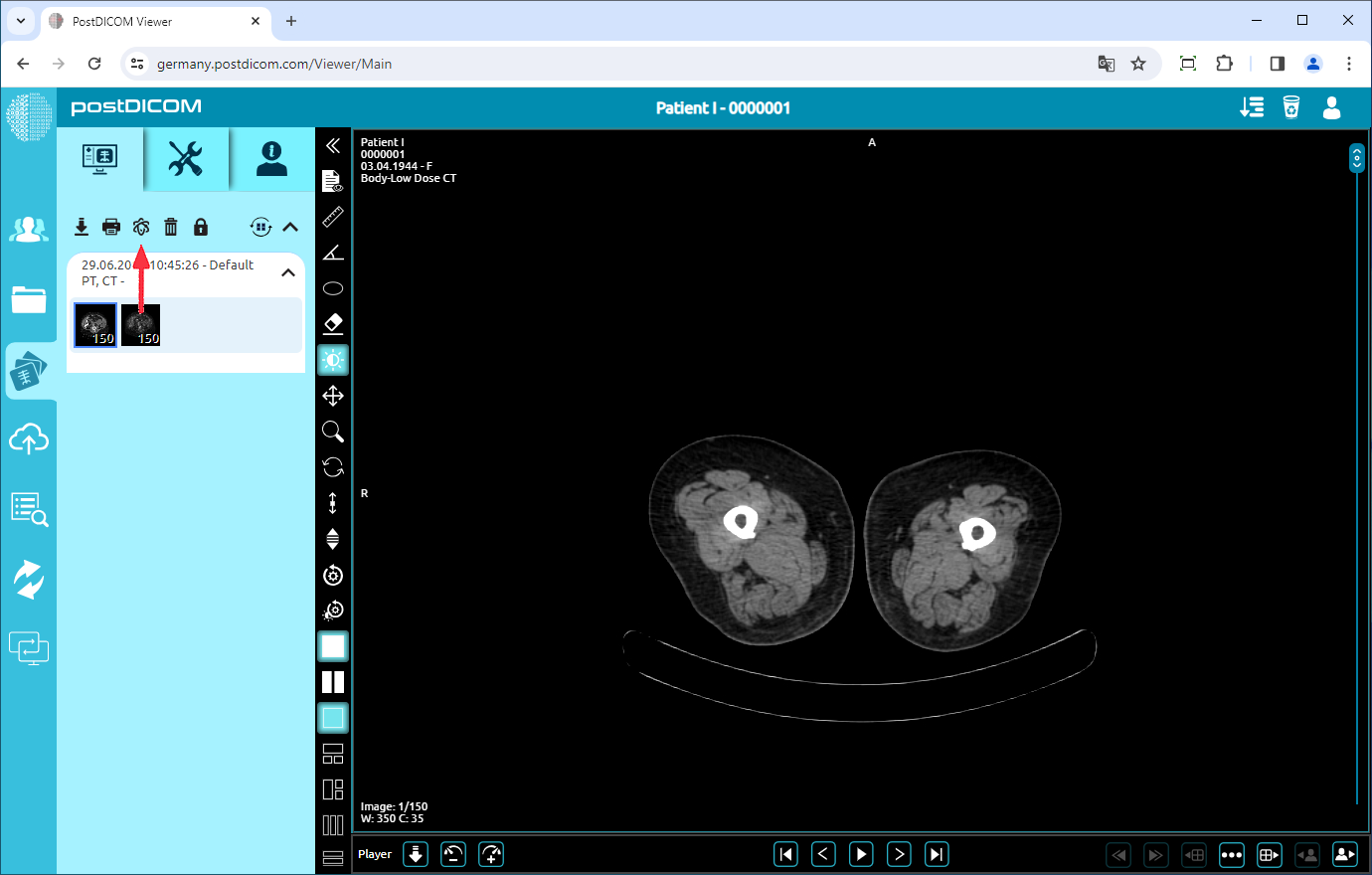

Click the “Fusion” button which is top left of the screen.

STEP
3

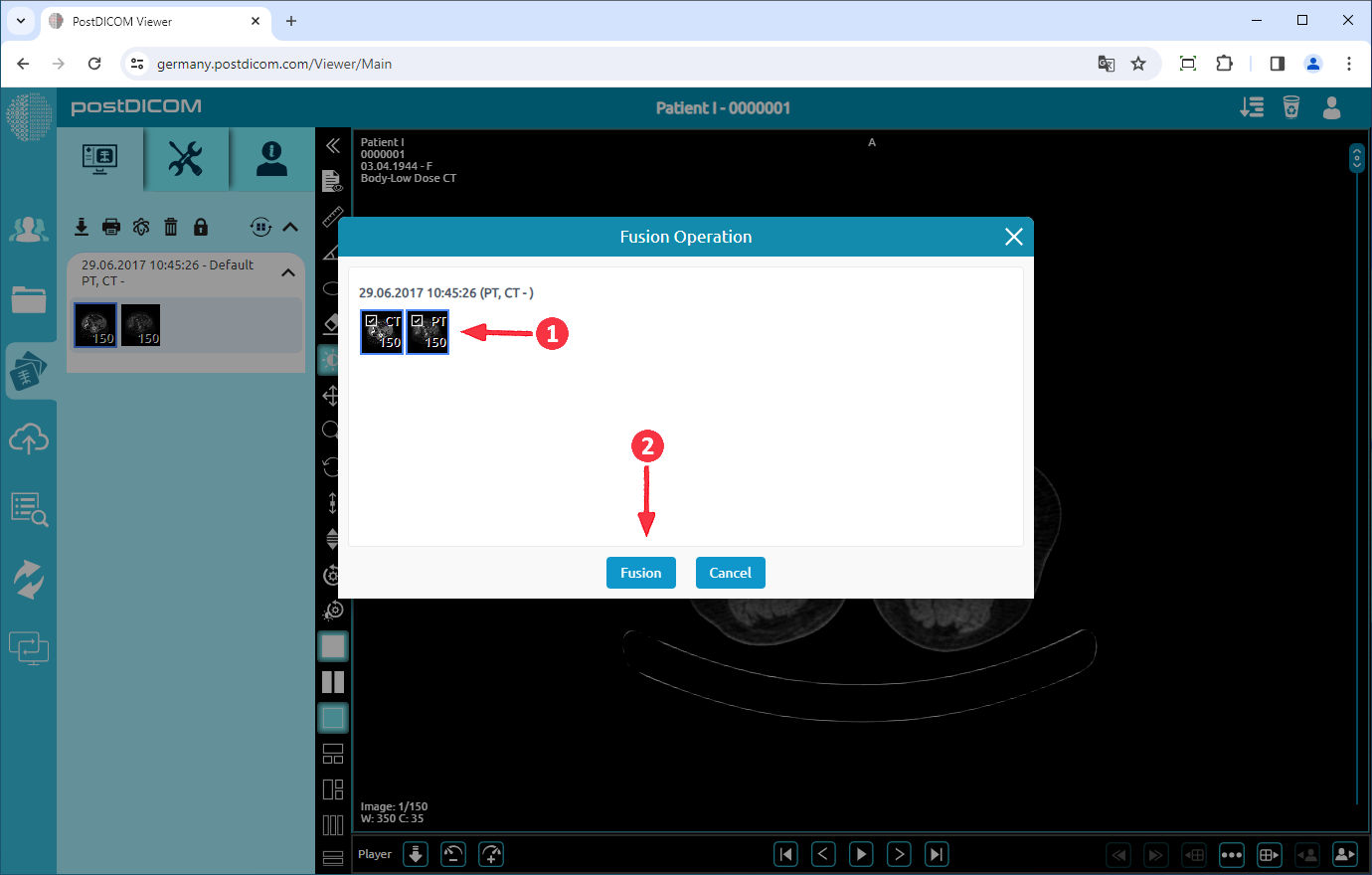

Select the series to be fused. Then click the "Fusion button.

STEP
4

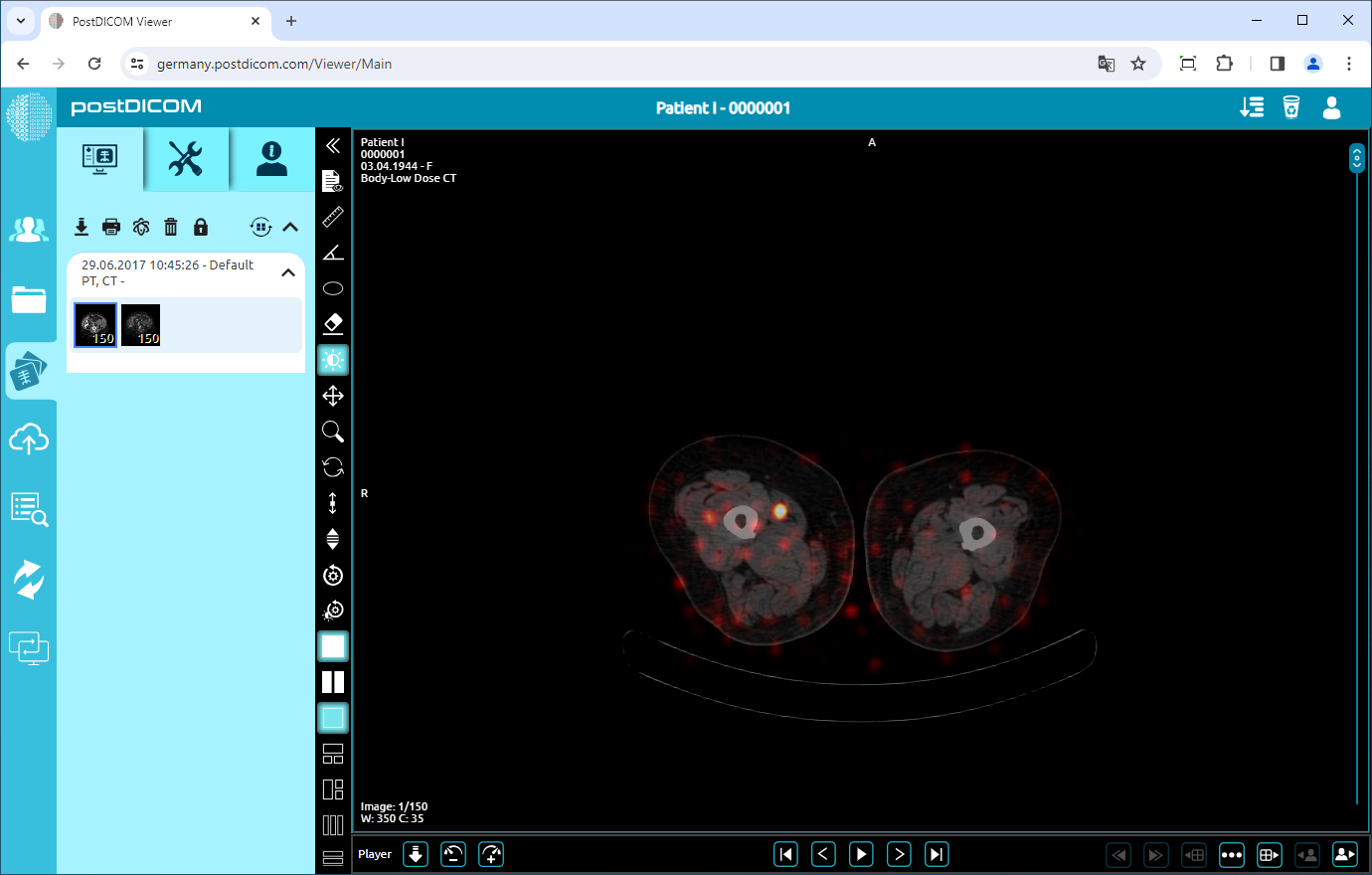

Fused image.

STEP
5

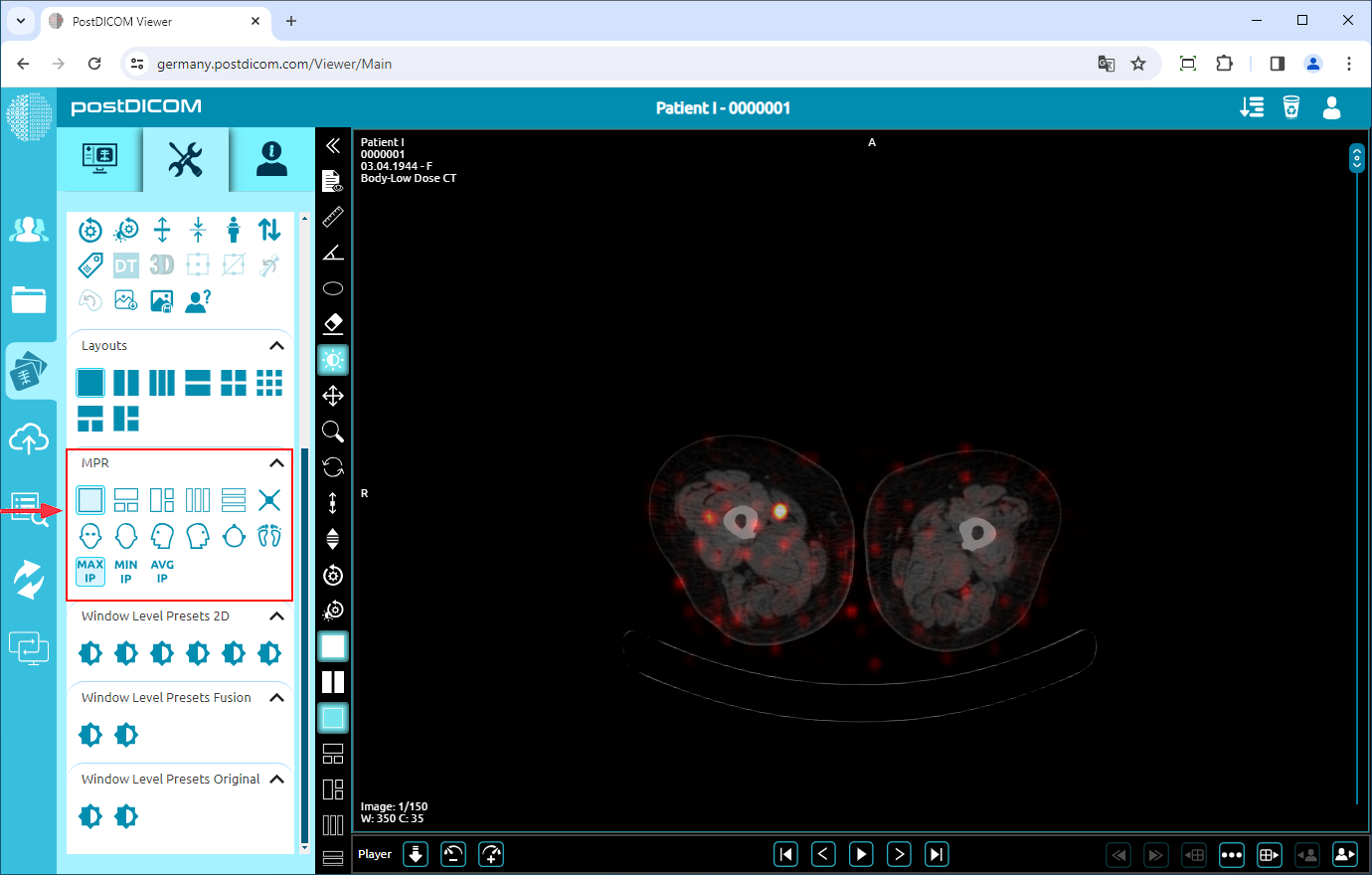

You can use MPR functions in your fusion.

STEP
6

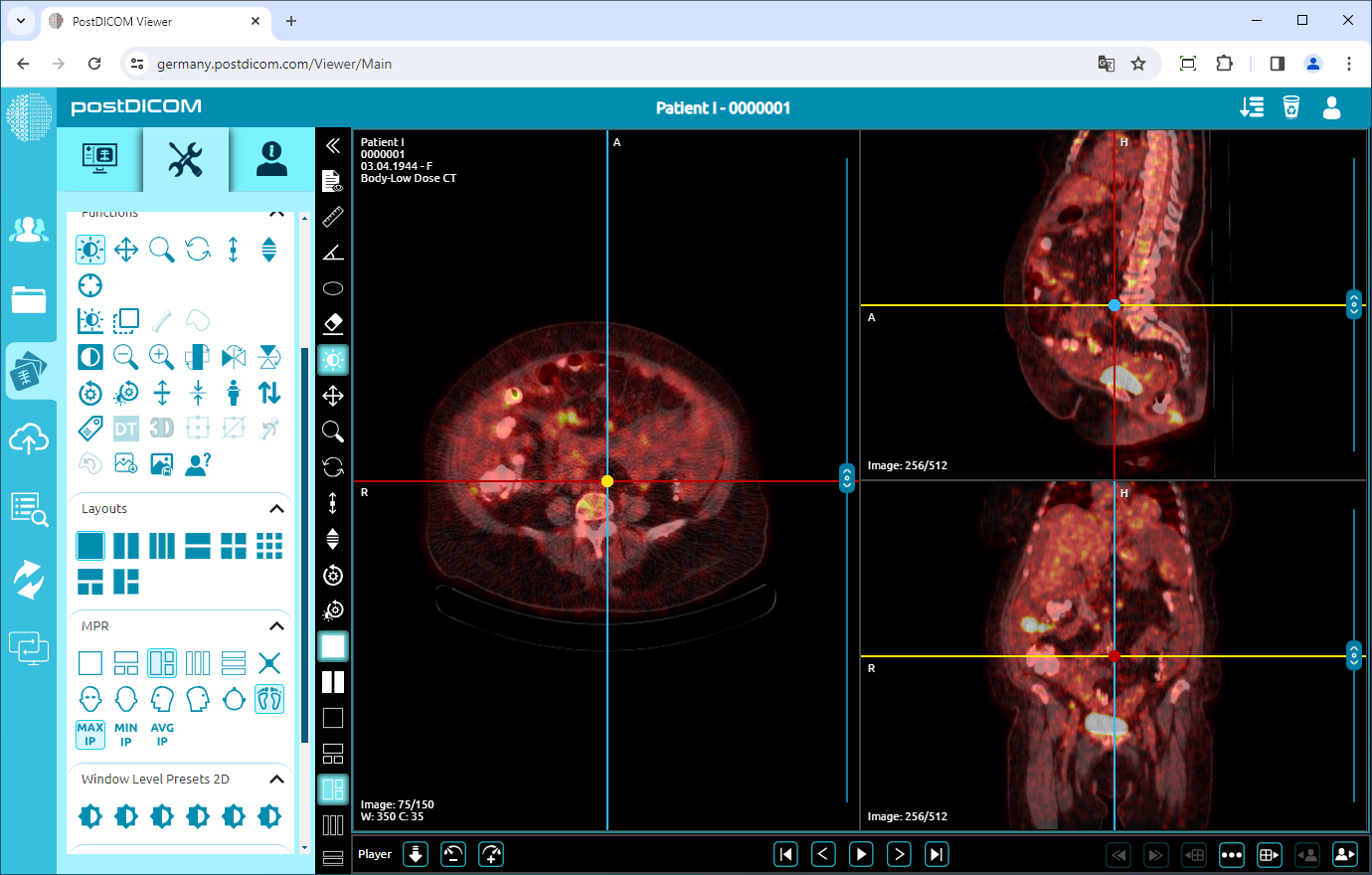

Fused image and MPR functions.

STEP
7

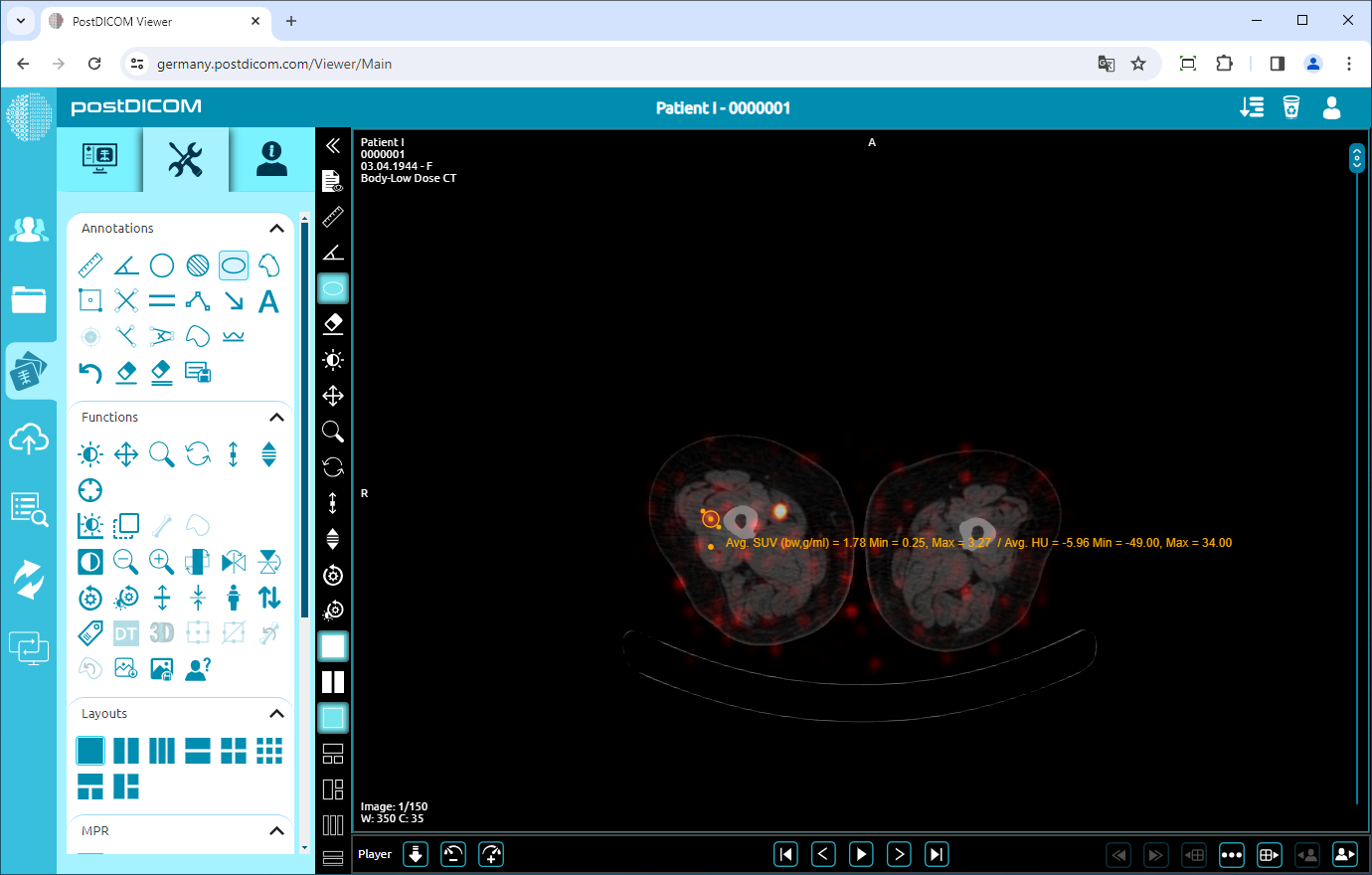

You can obtain SUV information by measuring ROI on the Fusion image.
