MeDiC software must be installed on a local area network (LAN) and DICOM Nodes must be at the same network, otherwise, they can not communicate with each other.

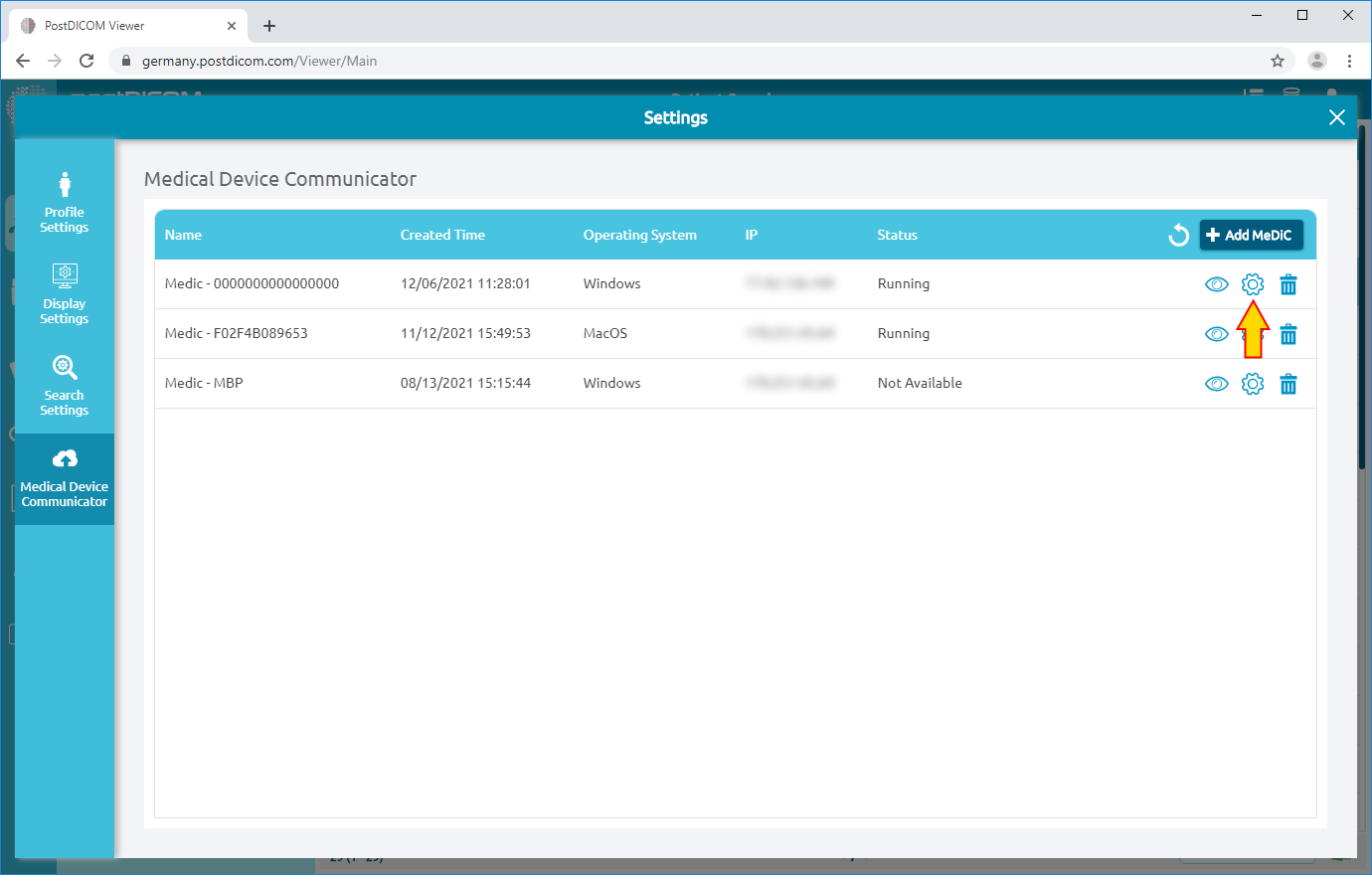

To edit a MeDiC application, click on “Edit” icon on the right side of the page.

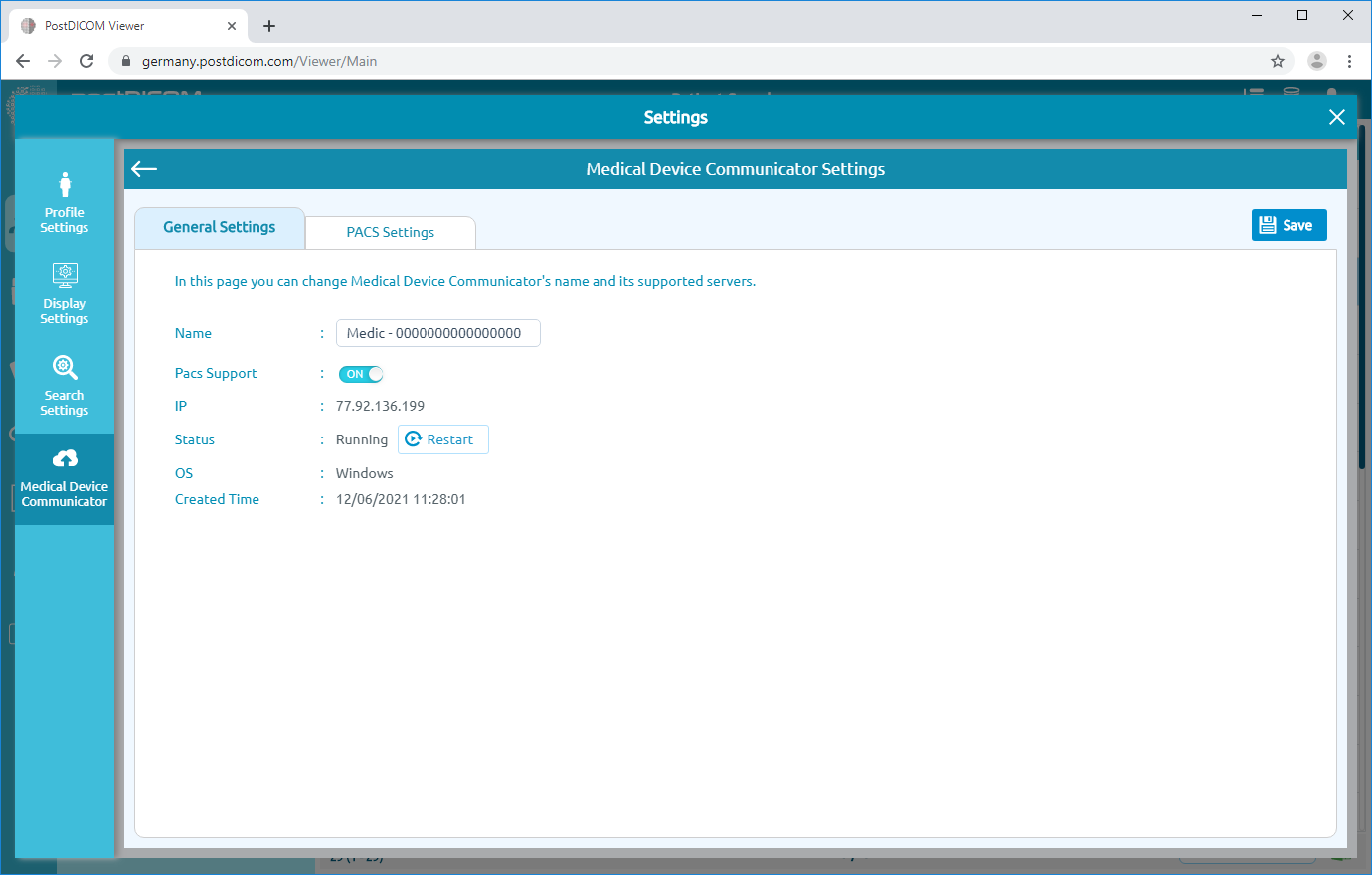

MeDiC General Settings will be shown.

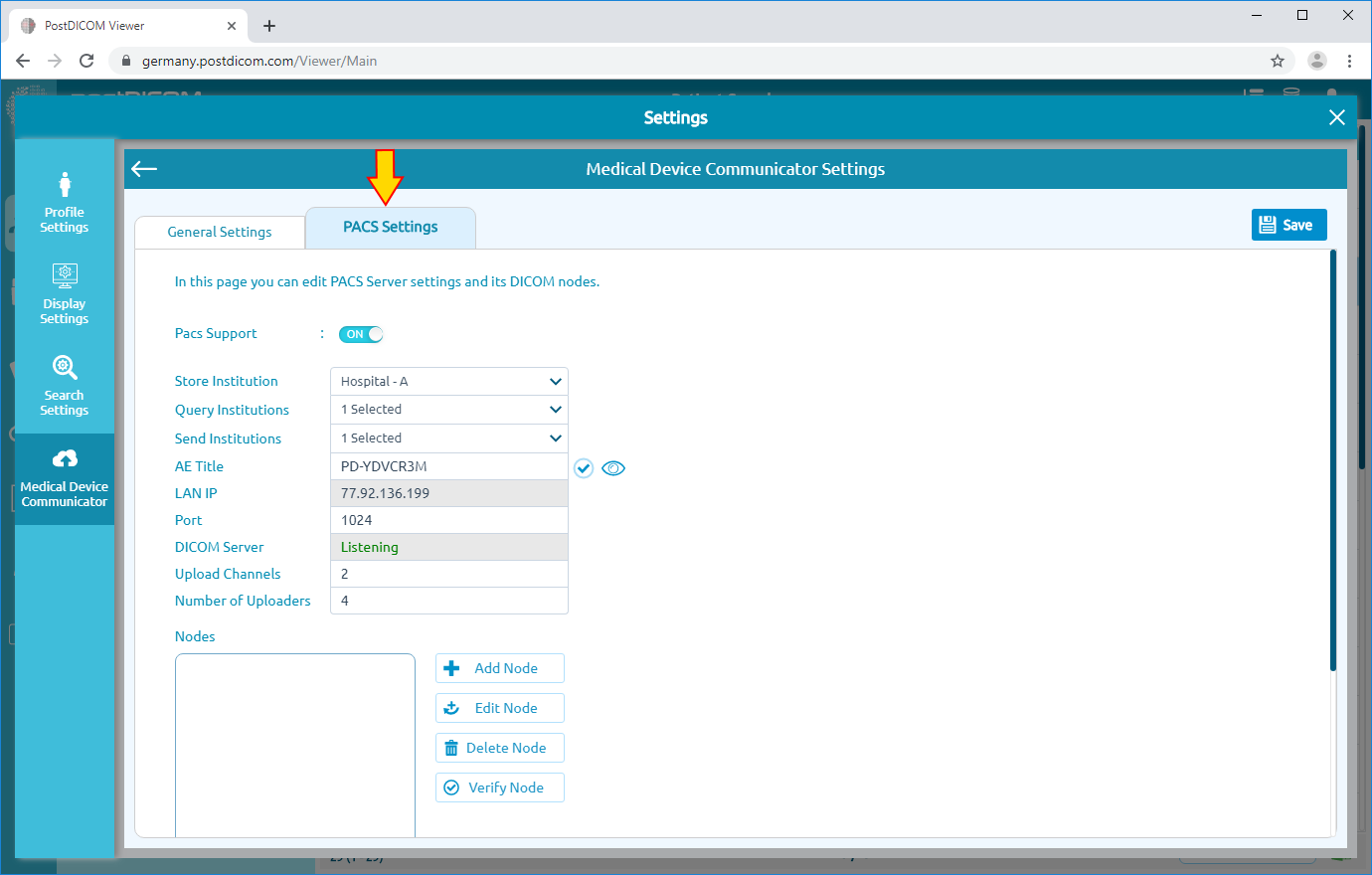

Click on “PACS Server Settings” header on the upper side of the page.

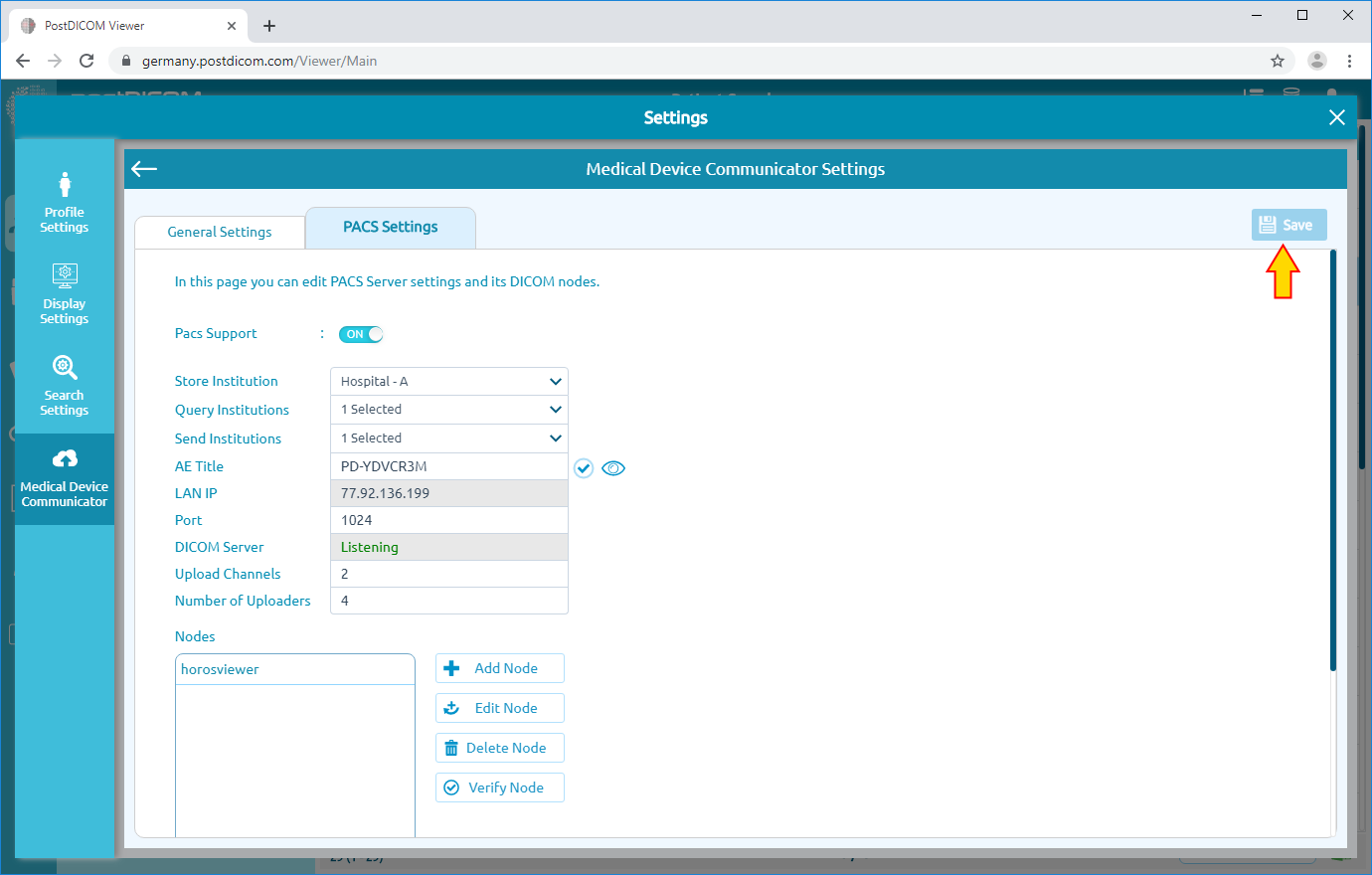

In this page, you can see MeDiC PACS Server settings with DICOM Nodes list. MeDiC PACS Server settings are Institution, AE Title, Port and Connection Security. Institution and MeDiC PACS Server AE Title are fixed. You can edit MeDiC PACS Server Port information by writing in related fields. After port number is changed, click on the “Save” button to save the changes. Then MeDiC will automatically restart.
MeDiC software must be installed on a local area network and DICOM Nodes must be at the same network, otherwise, they can not communicate with each other.
Adding a DICOM Node
DICOM request from unregistered nodes will be rejected by the MeDiC PACS Server. Therefore, every modality that will interact with the MeDiC PACS Server must be added to the Nodes list.

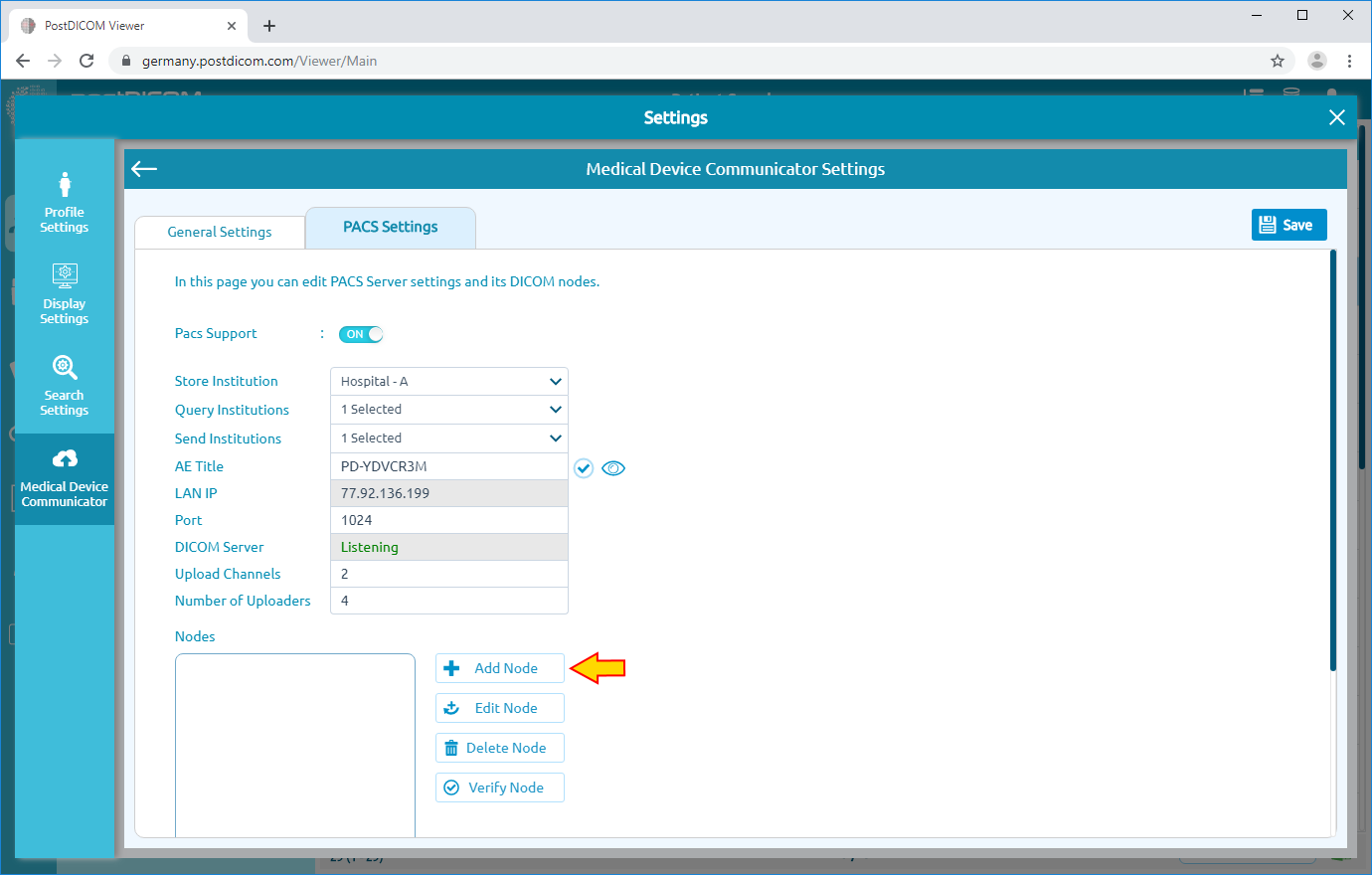

You can add a new DICOM Node by following the steps below.
Write name and LAN IP of the DICOM Node. Then, add new AE Title by clicking on the “Add” button.

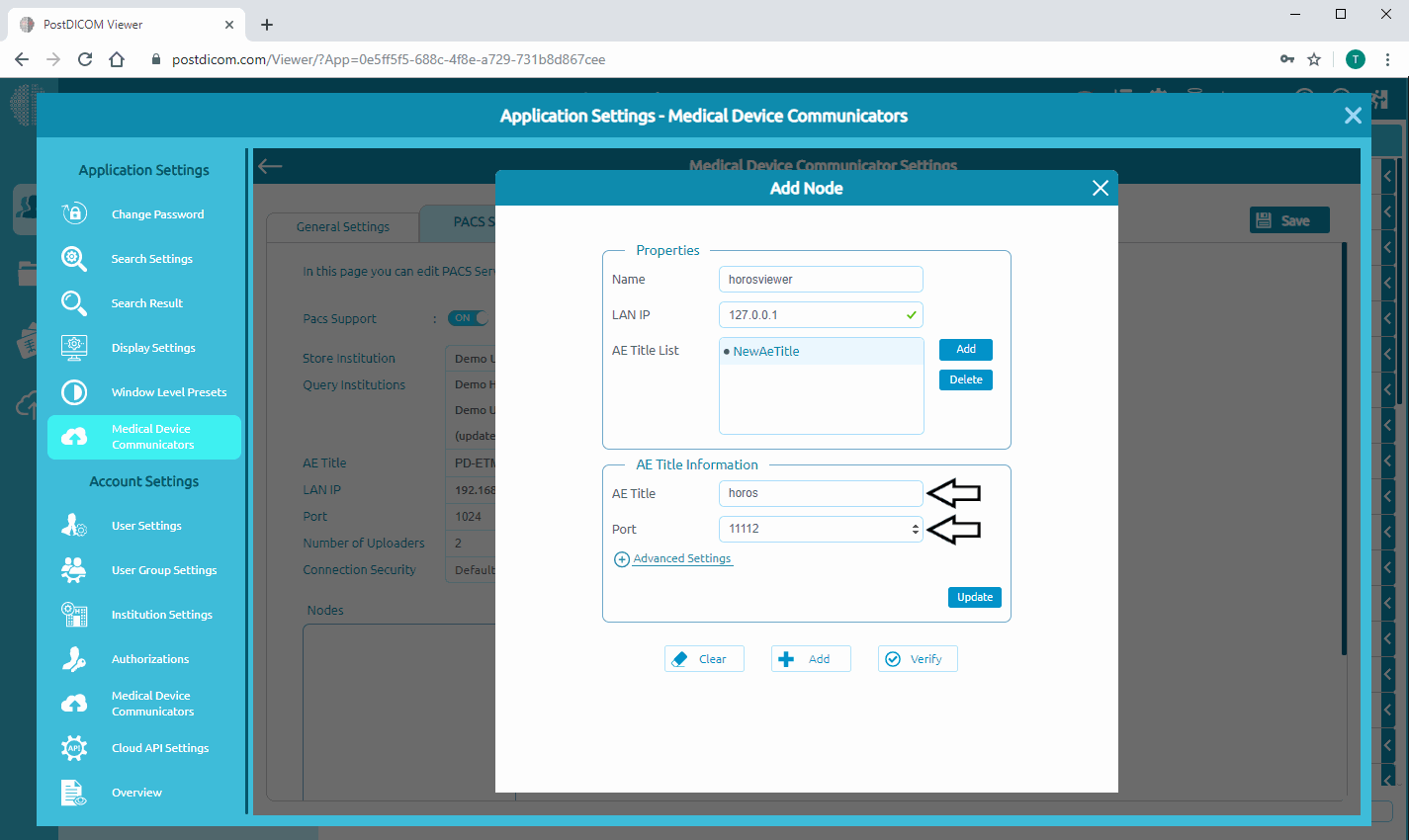

After clicking the “Add” icon, you can see “AE Title information” section on the lower side on the page. Change automatically filled AE Title and Port information with your medical device’s AE Title and Port information.
After filling with the correct information, click on the “Update” button to update AE Title List.

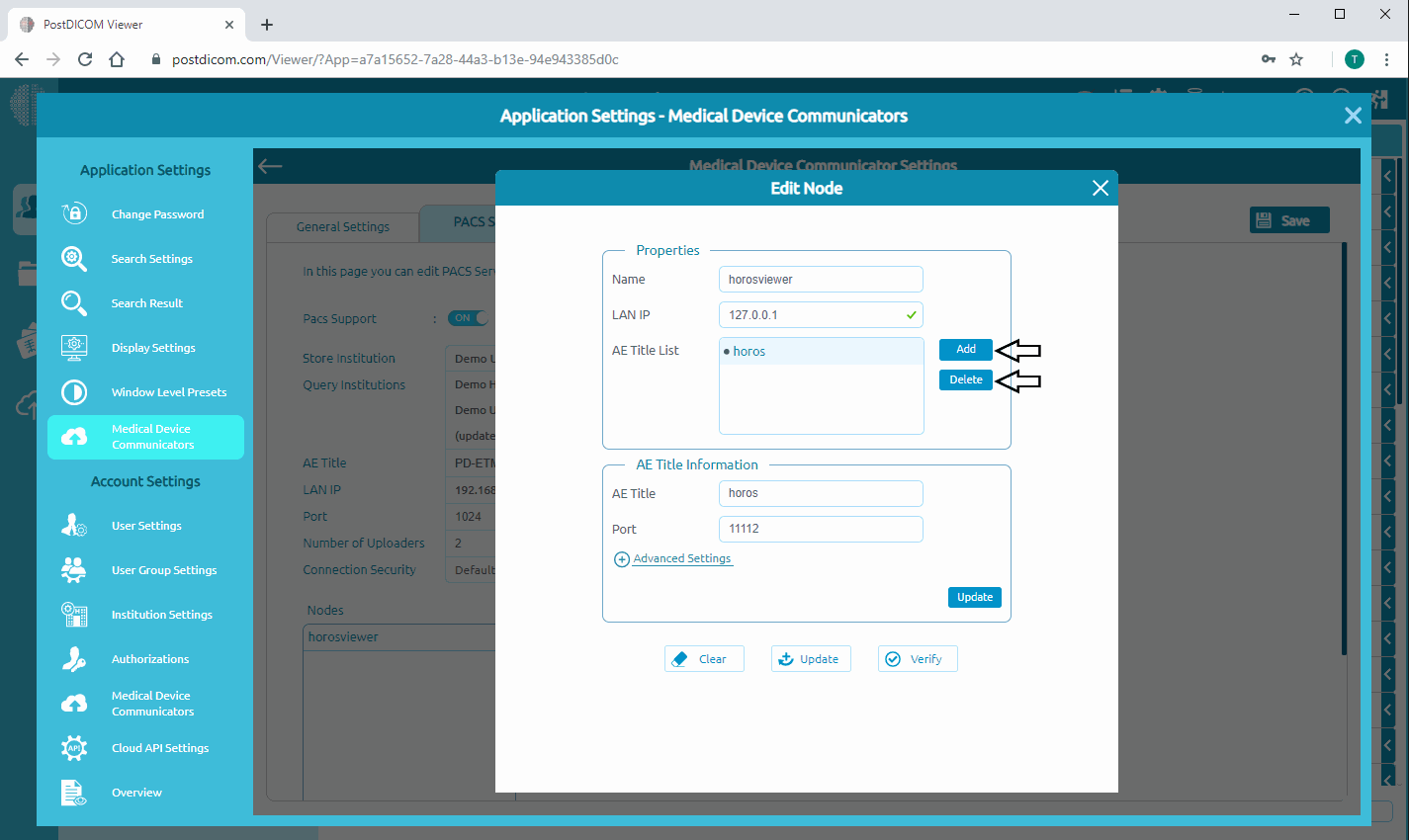

Most of the DICOM Nodes has only one AE Title and Port values. If your DICOM Node has more than one AE Title for different uses, click on the “Add” button to add new AE Title and port information.
To delete an value from the AE Title List, select it by clicking on the item. Then click the “Delete” button.
After filling the necessary information click on the “Add” button to add newly created DICOM node to the Nodes list.

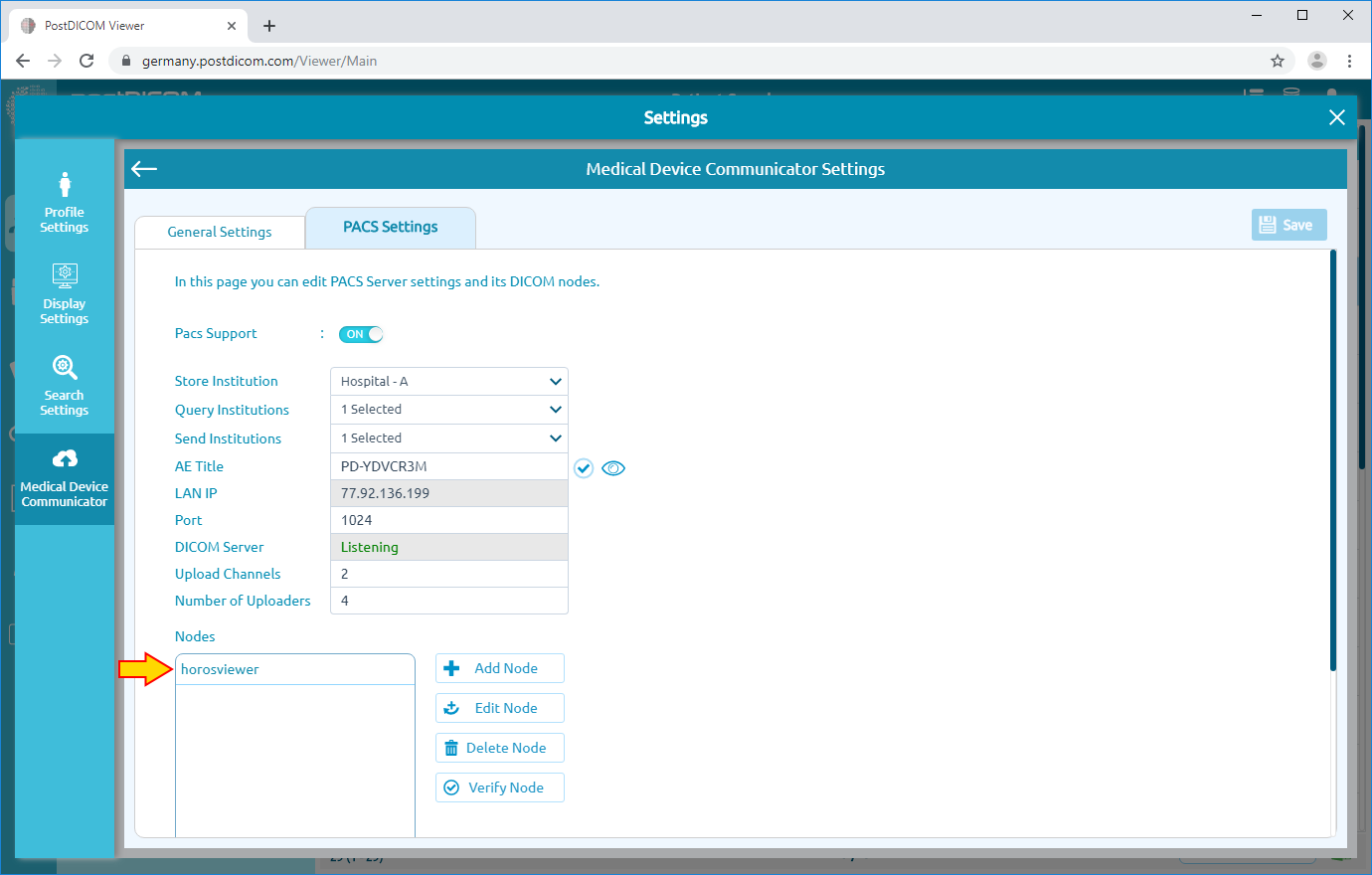

New DICOM node will be added to the Nodes list on the left side of the page.
To reflect the changes, click on “Save” button on the upper right side of the page. If you close the Settings page without saving, all of the changes will be lost. Make sure that you saved your changes before closing the current window.
Editing DICOM Nodes

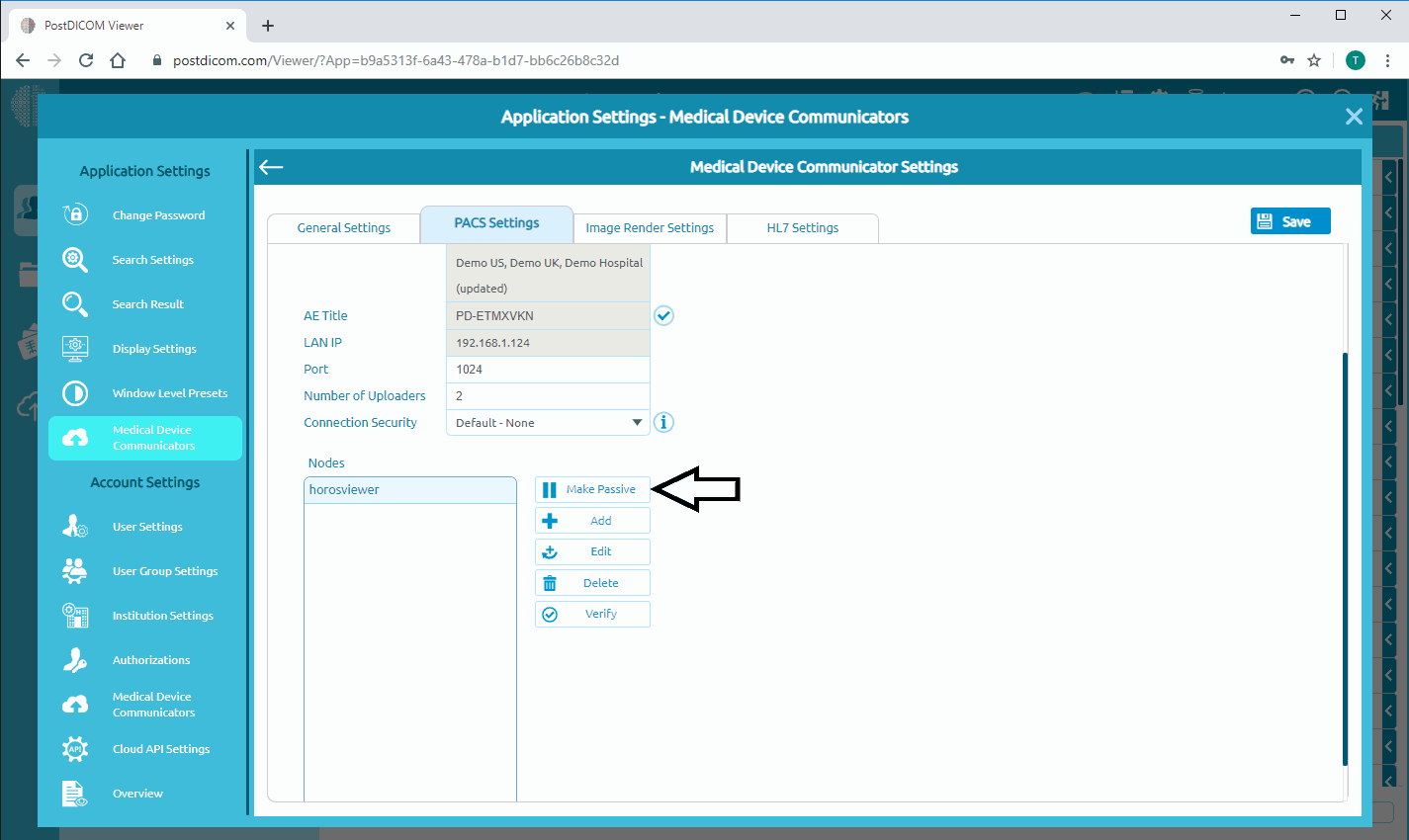

You can prevent your DICOM nodes to communicate with the MeDiC PACS Server by changing is Active/Passive status. Click on the “Passive” button to make the node passive (Cannot send data to MeDiC PACS Server and cannot receive data from it). Click on the “Active” button to make the node active (can send data to MeDiC PACS Server and can receive data from it). After changing its status click on the “Save” button to save the configuration.
To clear all of the information on the “Properties” and “AE Title Information” area click on the “Clear” button.
To delete a DICOM Node, click on the node you want to delete. Then, click on “Delete” icon on the right side of the page. Click on the “Save” button to save the configuration.

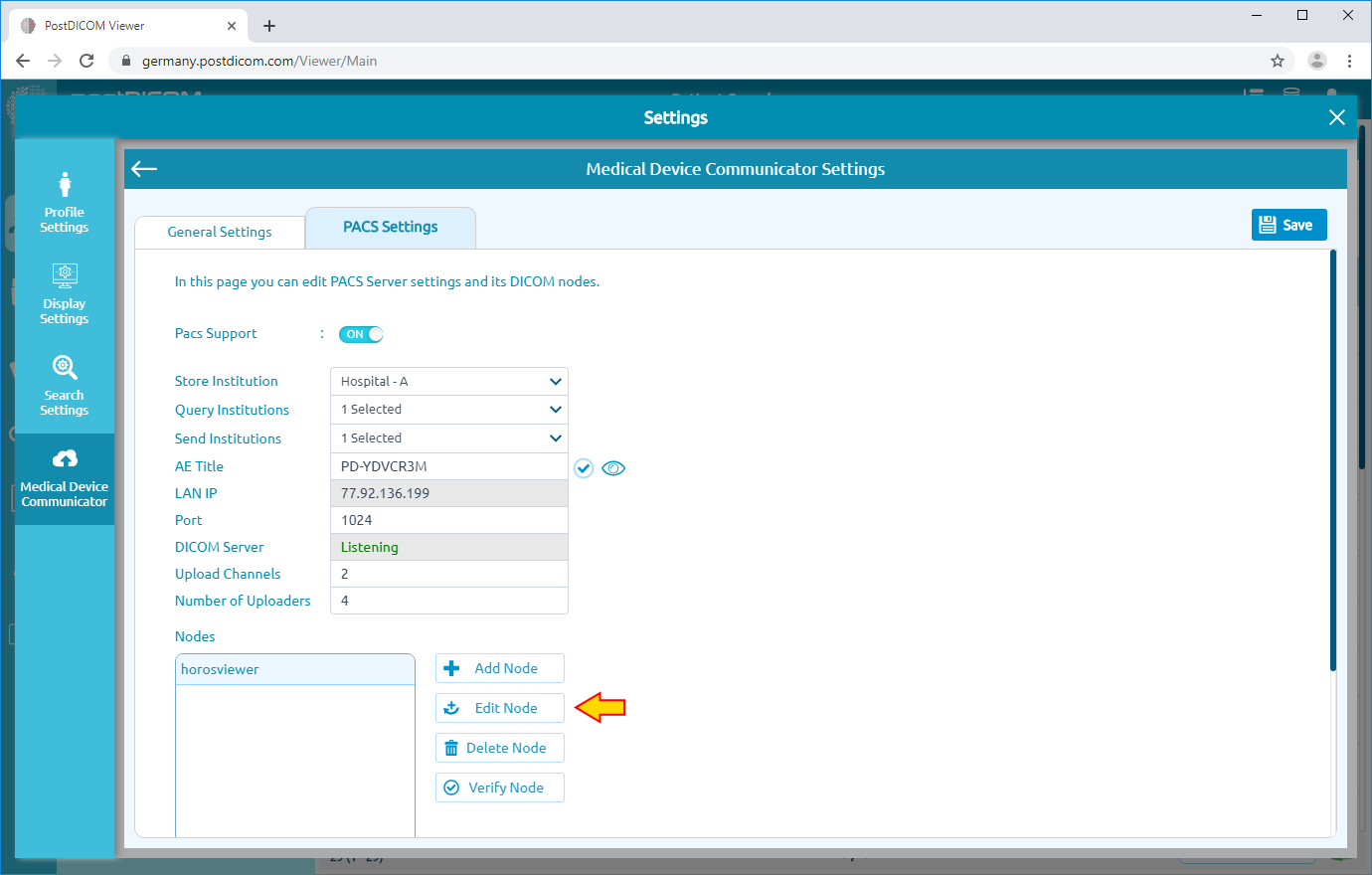

To edit a DICOM Node, click on the node you want to edit. Make necessary changes, then click on the “Update” button on the right side of the page. Finally, click on the “Save” button to save the configuration.
To verify (DICOM Echo) a DICOM Node click on the “Verify” button on the right side of the page.

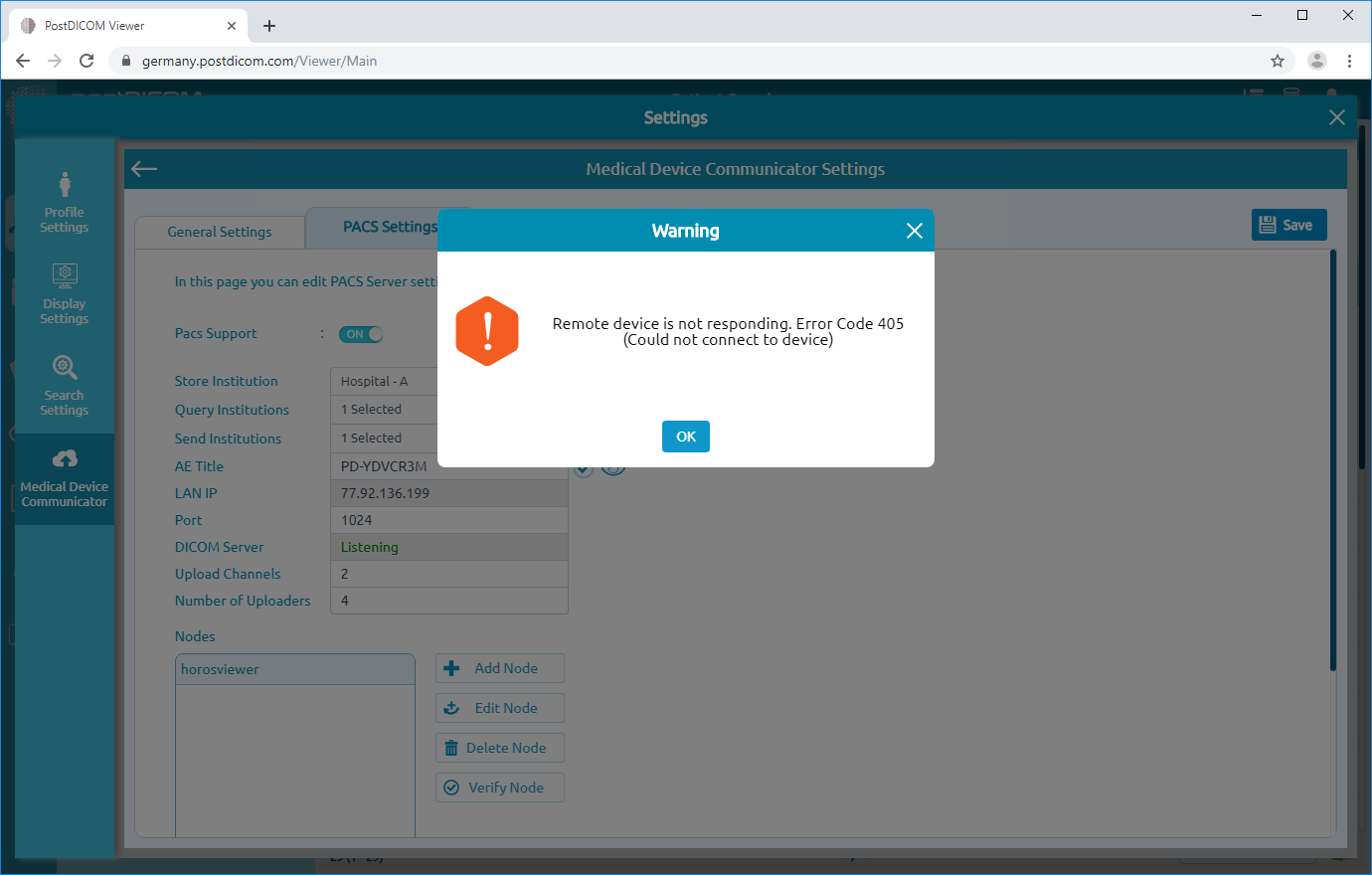

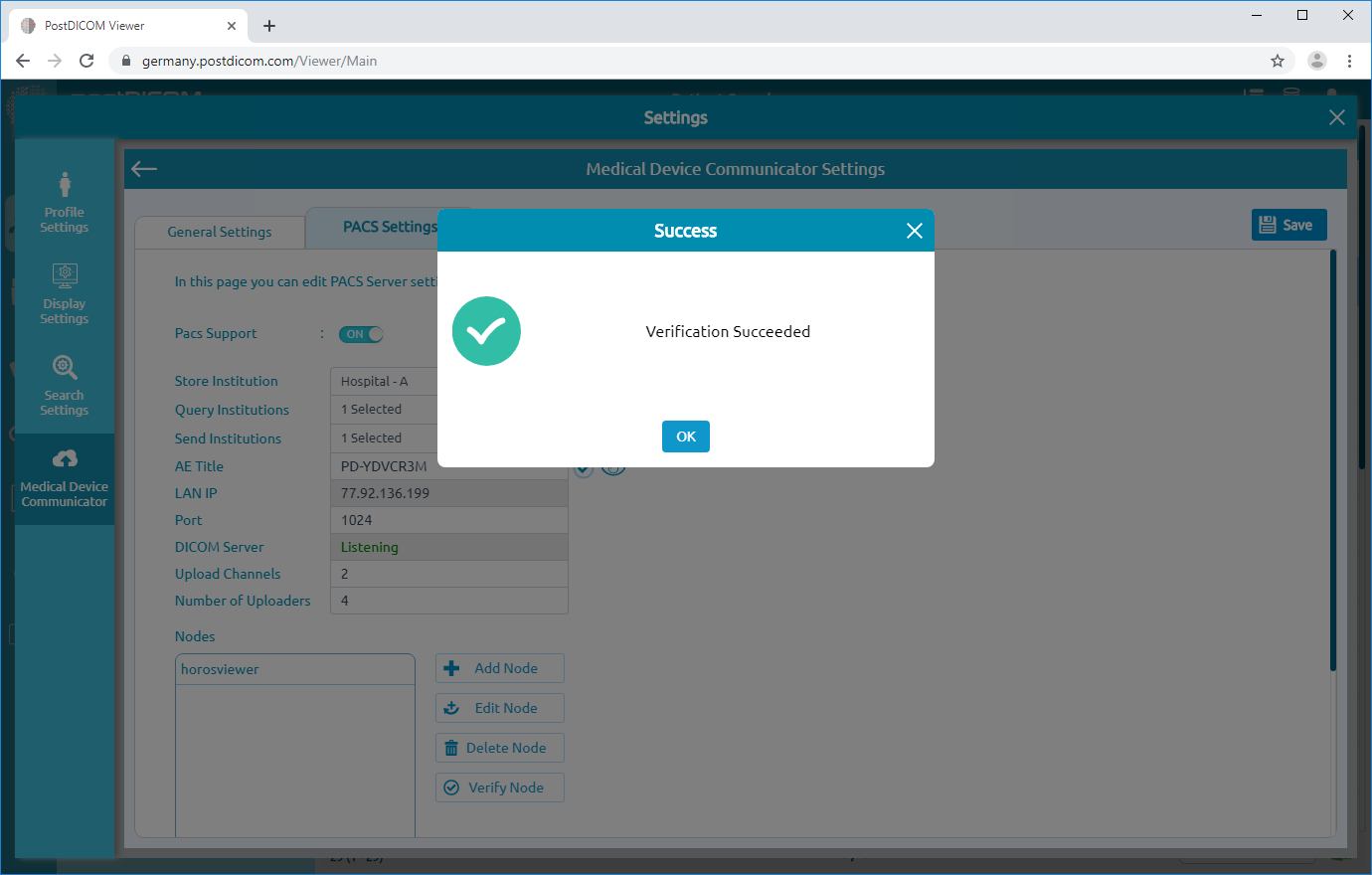

Once you have clicked, you will see a message box indicated that verification succeeded or not. Click on “OK” to close the box.
